Exploring ksqlDB, Superset with real time Twitter data feed of my favorite celebrities

Siva Nadesan

🕑 Published : Feb 17, 2020 | 🕣 Updated : Feb 17, 2020 | ⏳ 6 Min read

📁Superset KsqlDB #️⃣KsqlDB Confluent

Prerequisites

Install Confluent platform for your operating system using “https://docs.confluent.io/current/installation/installing_cp/index.html”
Get twitter API key applicable for you by following “https://developer.twitter.com/en/docs/basics/getting-started”
Install Kafka Connect Twitter, See “https://www.confluent.io/hub/jcustenborder/kafka-connect-twitter” for instructions

Ingest Twitter data

Create Kafka source connector and start ingesting data from twitter

CREATE SOURCE CONNECTOR TWITTER_CELEBRITIES_SRC_0020 WITH(
    "connector.class"='com.github.jcustenborder.kafka.connect.twitter.TwitterSourceConnector',
    "twitter.oauth.consumerKey"='xyz',
    "twitter.oauth.consumerSecret"='abc',
    "twitter.oauth.accessToken"='123',
    "twitter.oauth.accessTokenSecret"='789',
    "kafka.status.topic"='dev.etl.twitter.celebrities.src.0020',
    "key.converter"='io.confluent.connect.avro.AvroConverter',
    "key.converter.schemas.enable"='true',
    "key.converter.schema.registry.url"='http://localhost:8081',
    "value.converter"='io.confluent.connect.avro.AvroConverter',
    "value.converter.schemas.enable"='true',
    "value.converter.schema.registry.url"='http://localhost:8081',
    "process.deletes"=false,
    "filter.keywords"='mohanlal,dhoni'
);

Check status of connector using

ksql> DESCRIBE CONNECTOR TWITTER_CELEBRITIES_SRC_0020;
Name                 : TWITTER_CELEBRITIES_SRC_0020
Class                : com.github.jcustenborder.kafka.connect.twitter.TwitterSourceConnector
Type                 : source
State                : RUNNING
WorkerId             : 127.0.1.1:8083
Task ID | State   | Error Trace
---------------------------------
0       | RUNNING |
---------------------------------
ksql>

Check status of topic using, If we had tweets coming in you should see the topic created

ksql> SHOW TOPICS;
Kafka Topic                                                                                   | Partitions | Partition Replicas
---------------------------------------------------------------------------------------------------------------------------------
_confluent-command                                                                            | 1          | 1
_confluent-controlcenter-5-4-0-1-actual-group-consumption-rekey                               | 2          | 1
dev.etl.twitter.celebrities.src.0020                                                          | 1          | 1

Check messages in topic using

ksql> PRINT 'dev.etl.twitter.celebrities.src.0020' FROM BEGINNING LIMIT 1;
Format:AVRO
2/16/20 5:00:40 PM EST, y������", {"CreatedAt": 1581890434000, "Id": 1229163687396728832, "Text": "You can check here the Indian Premier League(IPL) 13 CSK team full squad 2020.\n#Yellove #WhistlePodu 🦁💛 #RR #KKR #SRH #CSK #MI #RCB #Virat #Kohli #Dhoni #IPL12 #IPLMeme #cricketball #cricketnews #IPL2020 #IPL13 #TeamIndia #ViratKohli #Mahi \nhttps://t.co/295eLd2xNJ", "Source": "<a href=\"https://www.hootsuite.com\" rel=\"nofollow\">Hootsuite Inc.</a>", "Truncated": true, "InReplyToStatusId": -1, "InReplyToUserId": -1, "InReplyToScreenName": null, "GeoLocation": null, "Place": null, "Favorited": false, "Retweeted": false, "FavoriteCount": 0, "User": {"Id": 1067662737675710466, "Name": "Tentaran Sports", "ScreenName": "TentaranSports", "Location": "New Delhi, India", "Description": "#INDvNZ - India and New zealand team squad for New zealand tour of India 2020.\n👇👇👇👇👇👇", "ContributorsEnabled": false, "ProfileImageURL": "http://pbs.twimg.com/profile_images/1088038065598164994/wQxPihWz_normal.jpg", "BiggerProfileImageURL": "http://pbs.twimg.com/profile_images/1088038065598164994/wQxPihWz_bigger.jpg", "MiniProfileImageURL": "http://pbs.twimg.com/profile_images/1088038065598164994/wQxPihWz_mini.jpg", "OriginalProfileImageURL": "http://pbs.twimg.com/profile_images/1088038065598164994/wQxPihWz.jpg", "ProfileImageURLHttps": "https://pbs.twimg.com/profile_images/1088038065598164994/wQxPihWz_normal.jpg", "BiggerProfileImageURLHttps": "https://pbs.twimg.com/profile_images/1088038065598164994/wQxPihWz_bigger.jpg", "MiniProfileImageURLHttps": "https://pbs.twimg.com/profile_images/1088038065598164994/wQxPihWz_mini.jpg", "OriginalProfileImageURLHttps": "https://pbs.twimg.com/profile_images/1088038065598164994/wQxPihWz.jpg", "DefaultProfileImage": false, "URL": "https://www.tentaran.com/indian-team-squad-for-new-zealand-tour-2020/", "Protected": false, "FollowersCount": 1167, "ProfileBackgroundColor": "000000", "ProfileTextColor": "000000", "ProfileLinkColor": "1B95E0", "ProfileSidebarFillColor": "000000", "ProfileSidebarBorderColor": "000000", "ProfileUseBackgroundImage": false, "DefaultProfile": false, "ShowAllInlineMedia": false, "FriendsCount": 862, "CreatedAt": 1543385607000, "FavouritesCount": 7155, "UtcOffset": -1, "TimeZone": null, "ProfileBackgroundImageURL": "http://abs.twimg.com/images/themes/theme1/bg.png", "ProfileBackgroundImageUrlHttps": "https://abs.twimg.com/images/themes/theme1/bg.png", "ProfileBannerURL": "https://pbs.twimg.com/profile_banners/1067662737675710466/1575021259/web", "ProfileBannerRetinaURL": "https://pbs.twimg.com/profile_banners/1067662737675710466/1575021259/web_retina", "ProfileBannerIPadURL": "https://pbs.twimg.com/profile_banners/1067662737675710466/1575021259/ipad", "ProfileBannerIPadRetinaURL": "https://pbs.twimg.com/profile_banners/1067662737675710466/1575021259/ipad_retina", "ProfileBannerMobileURL": "https://pbs.twimg.com/profile_banners/1067662737675710466/1575021259/mobile", "ProfileBannerMobileRetinaURL": "https://pbs.twimg.com/profile_banners/1067662737675710466/1575021259/mobile_retina", "ProfileBackgroundTiled": false, "Lang": null, "StatusesCount": 23426, "GeoEnabled": true, "Verified": false, "Translator": false, "ListedCount": 0, "FollowRequestSent": false, "WithheldInCountries": []}, "Retweet": false, "Contributors": [], "RetweetCount": 0, "RetweetedByMe": false, "CurrentUserRetweetId": -1, "PossiblySensitive": false, "Lang": "en", "WithheldInCountries": [], "HashtagEntities": [{"Text": "Yellove", "Start": 79, "End": 87}, {"Text": "WhistlePodu", "Start": 88, "End": 100}, {"Text": "RR", "Start": 104, "End": 107}, {"Text": "KKR", "Start": 108, "End": 112}, {"Text": "SRH", "Start": 113, "End": 117}, {"Text": "CSK", "Start": 118, "End": 122}, {"Text": "MI", "Start": 123, "End": 126}, {"Text": "RCB", "Start": 127, "End": 131}, {"Text": "Virat", "Start": 132, "End": 138}, {"Text": "Kohli", "Start": 139, "End": 145}, {"Text": "Dhoni", "Start": 146, "End": 152}, {"Text": "IPL12", "Start": 153, "End": 159}, {"Text": "IPLMeme", "Start": 160, "End": 168}, {"Text": "cricketball", "Start": 169, "End": 181}, {"Text": "cricketnews", "Start": 182, "End": 194}, {"Text": "IPL2020", "Start": 195, "End": 203}, {"Text": "IPL13", "Start": 204, "End": 210}, {"Text": "TeamIndia", "Start": 211, "End": 221}, {"Text": "ViratKohli", "Start": 222, "End": 233}, {"Text": "Mahi", "Start": 234, "End": 239}], "UserMentionEntities": [], "MediaEntities": [], "SymbolEntities": [], "URLEntities": [{"URL": "https://t.co/295eLd2xNJ", "Text": "https://t.co/295eLd2xNJ", "ExpandedURL": "https://www.tentaran.com/ipl-chennai-super-kings-team-2020-players-list-csk/", "Start": 241, "End": 264, "DisplayURL": "tentaran.com/ipl-chennai-su\u2026"}]}
ksql>

Now lets create a stream on this topic using

CREATE STREAM STM_TWITTER_CELEBRITIES_SRC_0020 WITH (KAFKA_TOPIC='dev.etl.twitter.celebrities.src.0020', VALUE_FORMAT='Avro');

Issue this command to start reading data from the beginning of the topic
```
SET 'auto.offset.reset'='earliest';
```
Selecting/Filtering columns with ksqlDB queries

Push Query
```
SELECT USER->SCREENNAME, LANG, TEXT FROM STM_TWITTER_CELEBRITIES_SRC_0020 EMIT CHANGES;
```
Pull Query
```
SELECT USER->SCREENNAME, LANG, TEXT FROM STM_TWITTER_CELEBRITIES_SRC_0020 WHERE LANG = 'en';
```
You can’t run a pull against stream, KSQL currently only supports pull queries on materialized aggregate tables. i.e. those created by a CREATE TABLE AS SELECT , FROM GROUP BY style statement.

Aggregates in ksqlDB

ksql> SELECT LANG,COUNT(*) FROM STM_TWITTER_CELEBRITIES_SRC_0020 GROUP BY LANG EMIT CHANGES;
+----------------------------------------------------------------------------------+----------------------------------------------------------------------------------+
|LANG                                                                              |KSQL_COL_1                                                                        |
+----------------------------------------------------------------------------------+----------------------------------------------------------------------------------+
|cy                                                                                |1                                                                                 |
|sv                                                                                |1                                                                                 |
|gu                                                                                |3                                                                                 |
|ro                                                                                |1                                                                                 |
|no                                                                                |1                                                                                 |
|te                                                                                |2                                                                                 |
|sl                                                                                |1                                                                                 |
|or                                                                                |1                                                                                 |

Now lets examine a record which is a candidate for EXPLODE

ksql> SELECT ID, HASHTAGENTITIES FROM STM_TWITTER_CELEBRITIES_SRC_0020 WHERE ID =1229243483900108801 EMIT CHANGES;
+----------------------------------------------------------------------------------+----------------------------------------------------------------------------------+
|ID                                                                                |HASHTAGENTITIES                                                                   |
+----------------------------------------------------------------------------------+----------------------------------------------------------------------------------+
|1229243483900108801                                                               |[{TEXT=Dhoni, START=51, END=57}, {TEXT=Dhonism, START=58, END=66}, {TEXT=happybirt|
|                                                                                  |hdayABDevilliers, START=67, END=93}, {TEXT=Mr360, START=94, END=100}, {TEXT=ABDevi|
|                                                                                  |lliers, START=101, END=114}]

Lets use EXPLODE function to take the array from the tweet of hashtags and/or users that have been mentioned in a tweet

ksql> SELECT ID, EXPLODE(HASHTAGENTITIES)->TEXT AS HASHTAG FROM STM_TWITTER_CELEBRITIES_SRC_0020 WHERE ID =1229243483900108801 EMIT CHANGES;
+----------------------------------------------------------------------------------+----------------------------------------------------------------------------------+
|ID                                                                                |HASHTAG                                                                           |
+----------------------------------------------------------------------------------+----------------------------------------------------------------------------------+
|1229243483900108801                                                               |Dhoni                                                                             |
|1229243483900108801                                                               |Dhonism                                                                           |
|1229243483900108801                                                               |happybirthdayABDevilliers                                                         |
|1229243483900108801                                                               |Mr360                                                                             |
|1229243483900108801                                                               |ABDevilliers

Create a stream of hashtags (converted to lowercase)

CREATE STREAM STM_TWITTER_CELEBRITIES_HASHTAGS AS SELECT ID, LCASE(EXPLODE(HASHTAGENTITIES)-> TEXT) AS HASHTAG FROM STM_TWITTER_CELEBRITIES_SRC_0020;

Create a table of hashtags and count each hashtags

CREATE TABLE TBL_TWITTER_CELEBRITIES_HASHTAGS AS SELECT HASHTAG, COUNT(*) AS CT FROM STM_TWITTER_CELEBRITIES_HASHTAGS GROUP BY HASHTAG;

Issue Push Query on the table

ksql> SELECT HASHTAG, CT FROM TBL_TWITTER_CELEBRITIES_HASHTAGS EMIT CHANGES;
+----------------------------------------------------------------------------------+----------------------------------------------------------------------------------+
|HASHTAG                                                                           |CT                                                                                |
+----------------------------------------------------------------------------------+----------------------------------------------------------------------------------+
|ipl12                                                                             |1                                                                                 |
|cricketball                                                                       |1                                                                                 |
|vineethsreenivasan                                                                |1                                                                                 |
|ich2020                                                                           |1                                                                                 |

Issue Pull Query on the table, since we have materialized aggregate tables we can issue Pull Query

ksql> SELECT HASHTAG, CT FROM TBL_TWITTER_CELEBRITIES_HASHTAGS WHERE ROWKEY='mohanlal';
+----------------------------------------------------------------------------------+----------------------------------------------------------------------------------+
|HASHTAG                                                                           |CT                                                                                |
+----------------------------------------------------------------------------------+----------------------------------------------------------------------------------+
|mohanlal                                                                          |1121                                                                              |
Query terminated
ksql>

Create a sink and offload this data to a PostgreSQL database

CREATE SINK CONNECTOR TWITTER_CELEBRITIES_0010_SINK_POSTGRESS WITH (
    'connector.class'                  		= 'io.confluent.connect.jdbc.JdbcSinkConnector',
    'connection.url'                   		= 'jdbc:postgresql://entechlog-vm-01:5432/',
    'connection.user'                  		= 'postgres',
    'connection.password'              		= 'postgres',
    'topics'                           		= 'TBL_TWITTER_CELEBRITIES_HASHTAGS',
    'key.converter'                    		= 'org.apache.kafka.connect.storage.StringConverter',
    'value.converter'                  		= 'io.confluent.connect.avro.AvroConverter',
    'value.converter.schema.registry.url'   =  'http://entechlog-vm-01:8081',
    'auto.create'                      		= 'true',
    'insert.mode'                      		= 'upsert',
    'table.name.format'				= 'entechlog.tbl_twitter_celebrities_hashtags',
    'pk.mode'                          		= 'record_value',
    'pk.fields'                        		= 'HASHTAG',
    'transforms'                       		= 'dropSysCols',
    'transforms.dropSysCols.type'      		= 'org.apache.kafka.connect.transforms.ReplaceField$Value',
    'transforms.dropSysCols.blacklist' 		= 'ROWKEY,ROWTIME'
  );

Validate the data in PostgreSQL

SELECT * FROM PG_CATALOG.PG_TABLES WHERE SCHEMANAME ='entechlog';

SELECT * FROM entechlog.tbl_twitter_celebrities_hashtags ORDER BY 1 DESC;

Data Visualization using Apache Superset

Install Superset

# Install Superset dependencies
sudo apt-get install build-essential libssl-dev libffi-dev python-dev python-pip libsasl2-dev libldap2-dev
sudo apt-get install build-essential libssl-dev libffi-dev python3.6-dev python-pip libsasl2-dev libldap2-dev

# Python virtualenv
pip install virtualenv
sudo apt-get install python3-venv

# Create and activate a virtualenv
python3 -m venv venv
. venv/bin/activate

# Install setup tools
pip install --upgrade setuptools pip

# Install superset
pip install apache-superset

# Initialize the database
superset db upgrade

# Create an admin user (you will be prompted to set a username, first and last name before setting a password)
export FLASK_APP=superset
flask fab create-admin

# Load some data to play with, This is not a optional step
superset load_examples

# Create default roles and permissions
superset init

# Install Postgres Database dependencies
sudo apt-get install libpq-dev
pip install psycopg2

# Start web server on port 6066, use -p to bind to another port, use -h 0.0.0.0 so that superset can be accessed outside localhost
#superset run -p 8088 --with-threads --reload --debugger
superset run -h 0.0.0.0 -p 6066 --with-threads --reload --debugger

Access Superset using “http://hostname:6066/superset/welcome”

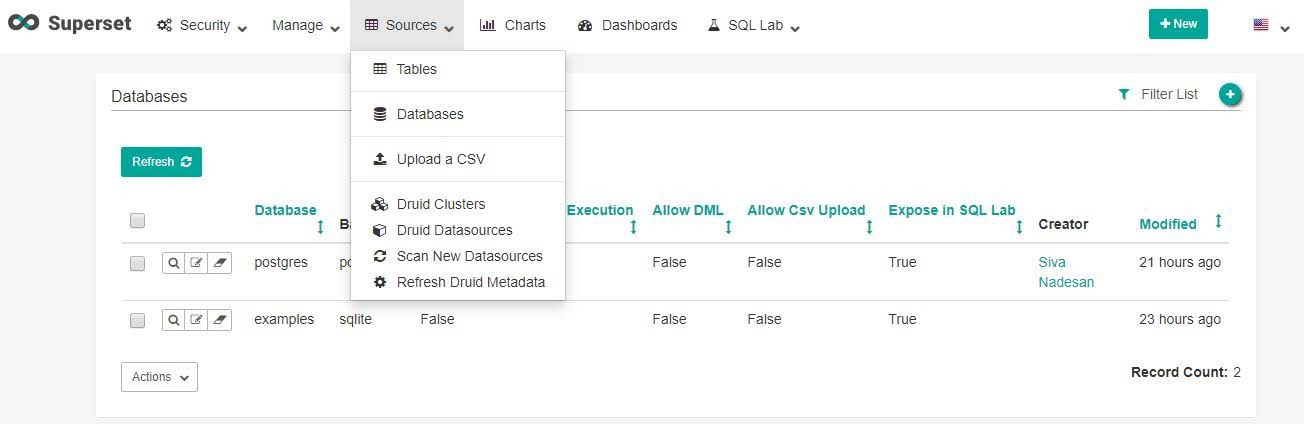

Create new data source from Sources–>Database–>Add a new record, Here SQLAlchemy URI for PostgreSQL database will look like postgresql://postgres:XXXXXXXXXX@entechlog-vm-01/postgres
Create new data source from Sources–>Tables–>Add a new record. The table name will be same as the table from your PostgreSQL sink
Create new chart from Charts–>Add a new record. Here
- Data Source -> Table Name
- Visualization Type - > Word cloud
- Series -> HASHTAG
- Metric - > MAX(CT)

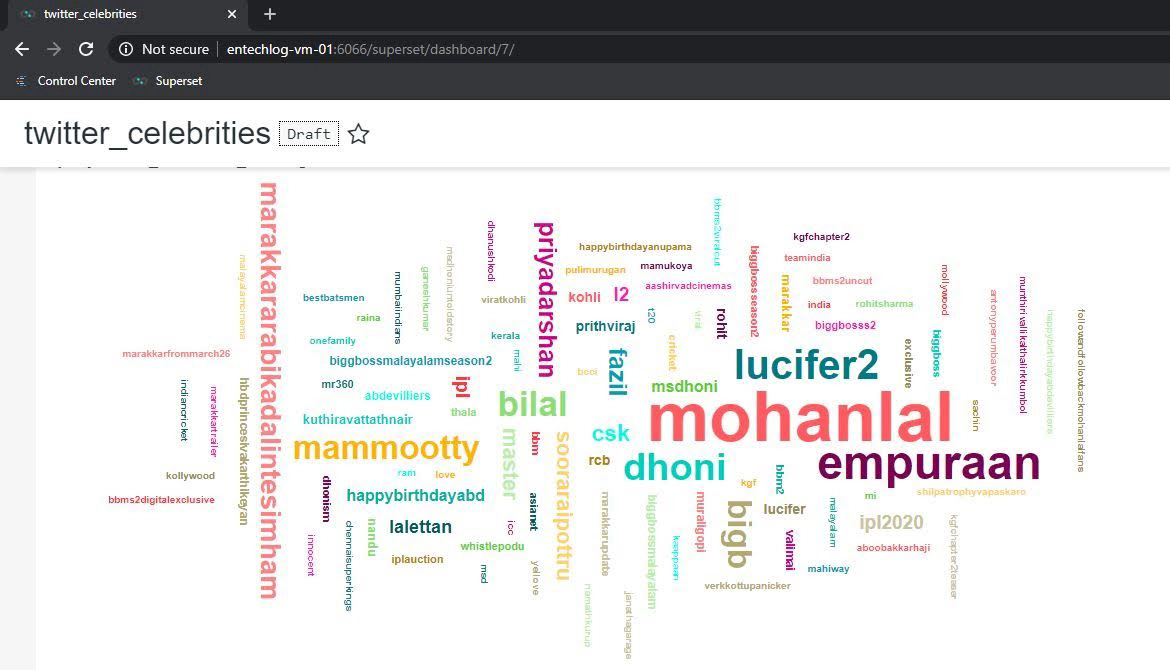

Now run and save the query into a dashboard, Your dashboard should look like below. This is the visual representation of hashtags for the twitter keywords for which we have real time data feed coming in.
